Logo Cup Bottles Laser Galvo Scanner Tumbler Laser Marking Machine 1064nm

Product Categories
Shenzhen Gainlaser Laser Technology Co.,Ltd
Contact Now

Logo Cup Bottles Laser Galvo Scanner Tumbler Laser Marking Machine 1064nm

  • 1
  • 2

Brand Name : Tenfotai

Model Number : S10YD42L1

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1

Price : Please inquire individually

Payment Terms : T/T

Supply Ability : 1000 sets per month

Delivery Time : Within 5 days

Packaging Details : Export Wooden Case

Mirror Length : 355nm

Clear Aperture : 10mm

Marking Speed : 4000mm/s

Scanning angle : 3.5 mrad

Name : Tumbler Laser Marking Machine

Item : Laser Galvo Scanner

Contact Now

Galvanometer Scanner Head for UV Laser Marking

1. Product Description

  • S10YD42L1 is a 2-dimensional scanning system with 10mm incident light spot, widely used in laser processing, laser marking, laser welding, 3D printing and other fields;
  • The product integrates servo system, electric motor manufacturing and precision machining into itself, having high performance and high reliability;
  • Unique structure design ensures excellent heat transfer performance and shielding performance. Each component is manufactured according to the strict standard of low drift and high stability;
  • Adopting universal XY2-100 communication protocol to receive digital command, it’s applicable to different cards.

Logo Cup Bottles Laser Galvo Scanner Tumbler Laser Marking Machine 1064nmLogo Cup Bottles Laser Galvo Scanner Tumbler Laser Marking Machine 1064nm

2. Technical Parameter

Dynamic Property:
Tracking Error 0.25ms
Long Time 8-hour Drift ＜ 30 mrad
Zero Point Drift ＜15 urad/k
Gain Drift ＜50 ppm/k
Photoelectric Property:
Clear Aperture 10 mm
Scanning Angle ±0.35 rad
Nonlinearity 3.5 mrad
Basic Property:
Mirror Wavelength 1064nm
Marking Speed 4000 mm/s
Positioning Speed 3 m/s
Power Requirement ±15V DC, 3A each path
Working Temp 25℃±10
Interface protocol XY2-100

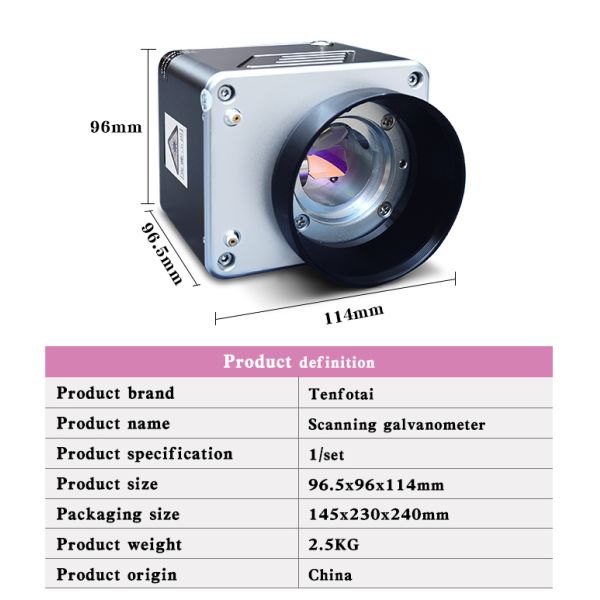

3. Mechanical Drawing

Logo Cup Bottles Laser Galvo Scanner Tumbler Laser Marking Machine 1064nm
